CAPmeter

USB Interface for Capacitive Sensors with ultra high resolution

Specifications

  • 24 bit DAC converter with 2 channels
  • ± 4 pF range; larger range via matching capacitors
  • Resolution down to 4aF, accuracy 4fF
  • Built in temperature sensor
  • Data logging software to record an arbitrary number of interfaces simultaneously

Easy to use research platform

Developed in collaboration with the University of Tübingen, this interface offers ease of use and flexibility. A simple connector allows to attach sensors directly to the PCB.

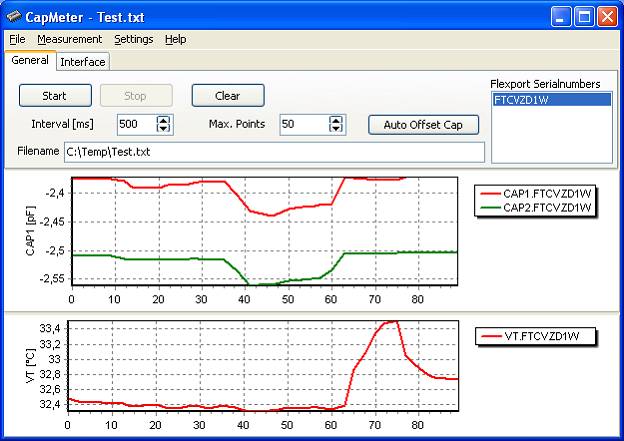

Software support

A comprehensive software is included that logs data directly to a text file for easy import into Excel® and other software packages.
