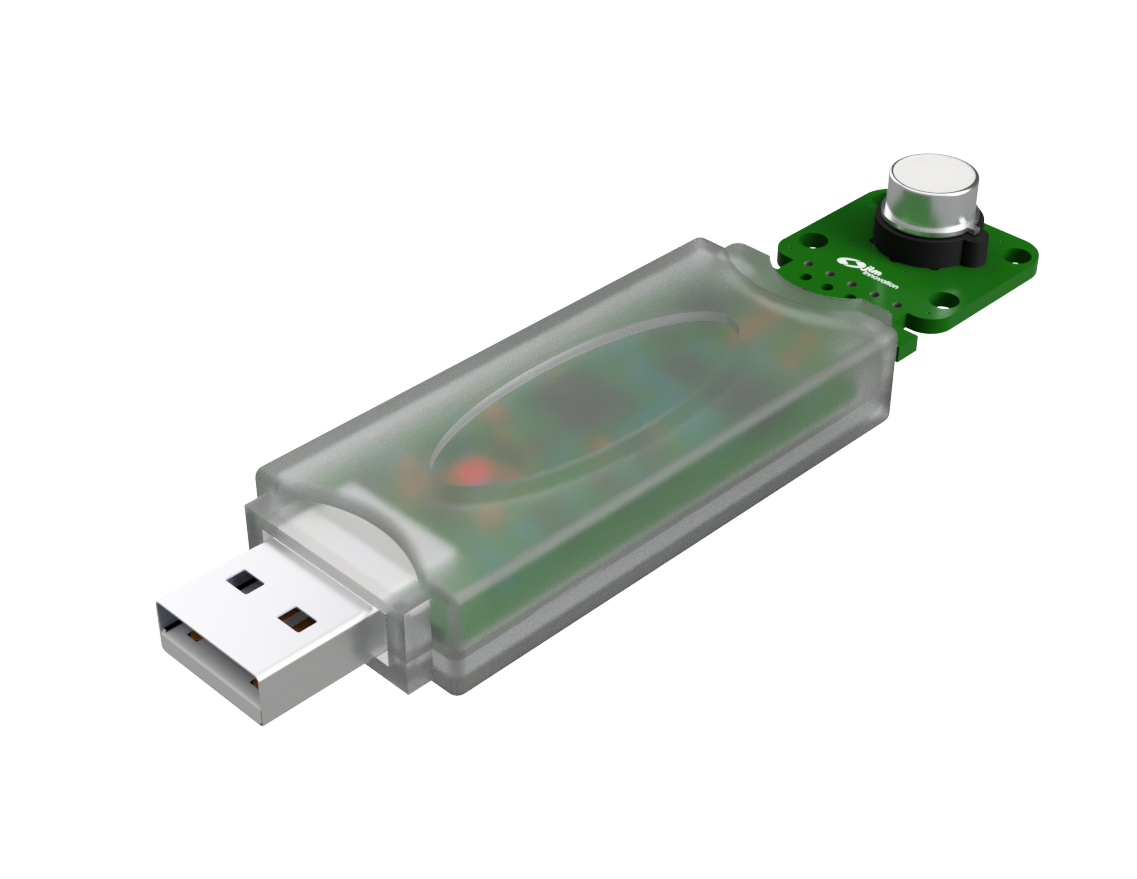

MOXstick

USB interface for metal oxide gas sensors

Plug-and-play USB Interface for metal oxide sensors for a broad range of commercial and R&D metal oxid gas sensors.

Specifications

  • supports a broad range of metal oxide gas sensors
  • resistance measurement range up to 10 MOhm
  • heater voltage range 0 .. 5.6V
  • heater current range 0 .. 200mA

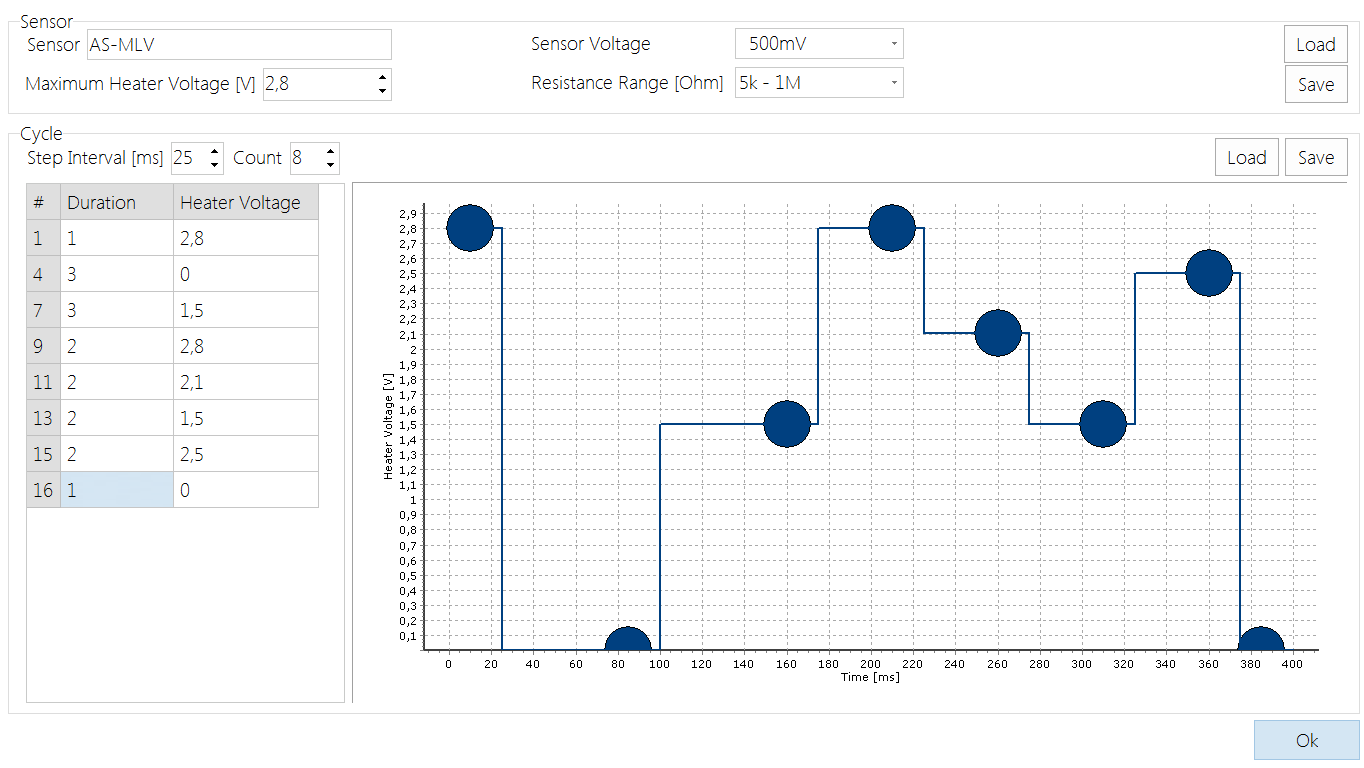

  • complex heater cycles possible

Instant installation

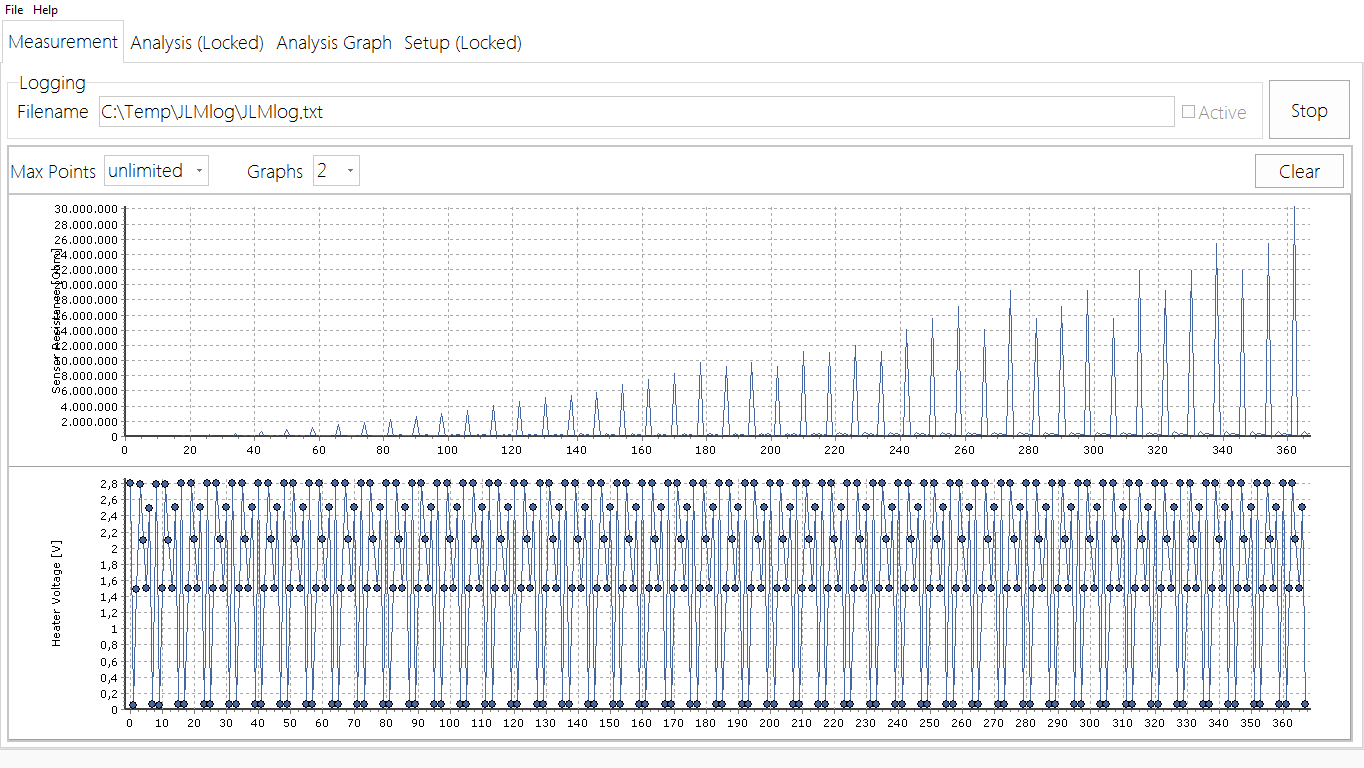

The MOXstick does not need any driver installation, just plug in the USB stick and run the software. Use the provided program to set sensor excitation and sampling modes, and measure! MOX gas excitation programming and sensing has never been easier!

Universal interfacing

The MOXstick interface can provide interfacing and programmable excitation to a vast majority of available MOX gas sensors and even some solid electrolyte ones, custom interfacing to other sensors (e.g. for research purposes) is also available upon request. Contact us with your requirements.

Build your own custom enose!

Plug several MOXsticks into your PC to create a multi sensor system including sensor temperature modulation. The software can operate many USB sticks simultaneously and synchronously.

Telnet connectivity

The acquisition software can provide telnet connectivity, which besides enabling the setup of sensor networks also provides easy integration with software packages like MATLAB® or LabView®. Custom Labview drivers are also available on demand.

Compatible with MultiSens

Operate the MOXstick with the MultiSens software and combine it with our other measurement systems to create a true hybrid sensor system integrating different sensor technologies.

Educational package available

The flexibility and ease of use of the MOXstick makes it particularly suited for educational purposes. An educational package is available, including an educational license of the MultiSens software for multivariate data analysis. All that is needed to learn the basics of electronic nose technology in a convenient single package.
